Sodium Starting Battery

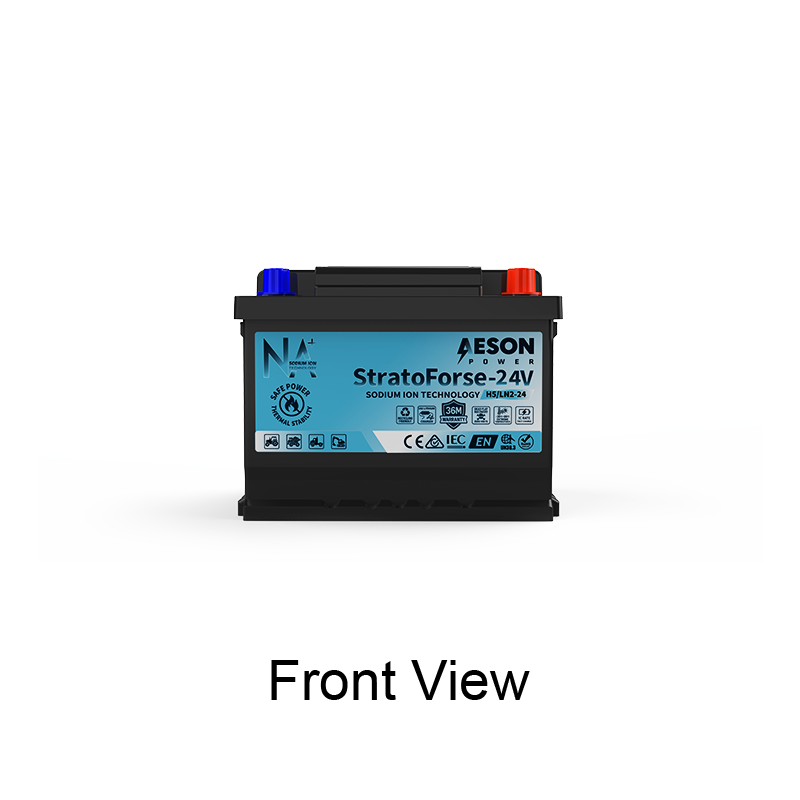

H5/LN2-24
Start battery replaces 2x12V with 1x24V
Model / Code · H5/LN2-24 FT
24VVoltage
450CCA
20AhCapacity
480WhEnergy
29.2RC (min)
Engineered Advantages
Features & Benefits
24V Pack All in One
2700 Cycles @50%DoD
80% Depth of Discharge @ 25°C
Dump Truck
Excavator
Fast charge/Discharge
High Energy Across the Volt Range
High Temperature Operation up to 80℃
Light Weight-60% of a Traditional Lead Battery
Long Warranty
Maintenance Free
No Acid
Nontoxic
Recovers from 0 Volts Without Severe Damage
Recycling-Friendly
Safe/Fire Resistant Thermal Stability
Semi-trailer Truck
Tractor
Use Lithium charger
Vibration Resistance Improved
Water or CO2
The Numbers
Technical Specifications
| Voltage | 24 V |
|---|---|
| Cold Cranking Amps (CCA) | 450 A |
| Capacity | 20 Ah |
| Energy | 480 Wh |
| Reserve Capacity (RC) | 29.2 min |
| Dimensions (W×H×D) | 242 × 190 × 175 mm |
| Weight | 6.1 kg |
